URDF, Robot Description, and Robot State Publisher

URDF (Unified Robot Description Format) is an XML file that lets you define your entire robot’s physical structure—its parts and how they’re connected—in one place. This automates the creation of TF tree you just built manually with individual commands. Instead of running multiple commands in multiple terminals to define each relationship, you describe the whole robot in one file and use a single ROS2 node to broadcast all its transforms at once using robot state publisher.

The components of URDF for tf2 are:

<link> : A link represents physical part of your robot (like a wheel, a sensor, or a chassis). Each <link> becomes a frame in your TF tree.
<joint>: A joint connects two links together. It defines the relationship between them, including their offset and how they can move. Each <joint> becomes a transform in your TF tree.

For static models, we use a fixed joint, which is the direct equivalent of the static_transform_publisher we used before.

ROS2 has a node called robot_state_publisher that does the automation for us. It reads the URDF file, finds all the <joint> definitions, and automatically publishes the corresponding transforms to /tf_static (for fixed joints) and /tf (for movable joints).

For this part of tutorial, we use static_transform_publisher, that correspond to a fixed joint in the URDF (joints that cannot move). This allows us to “pretend” that the robot is at a fixed position so we can focus purely on learning how TF relationship are structure, how to make a URDF file to compute TF structures automatically. We cannot make robots just with fixed joints (or static_transforms). We will use the similar concepts and learn how we can make a robot that actually moves with other movable joints (or dynamic_transforms).

1. Creating a URDF for Our Robot Arm (static)

Our robot consists of arm_base and gripper. We can create a URDF file to describe the relationship between arm_base and gripper.

Create a file named my_arm.urdf and paste the following content into it.

<?xml version="1.0"?>
<robot name="my_robot_arm">
	<link name="arm_base"/>
	<link name="gripper"/>

	<joint name="arm_base_to_gripper_joint" type="fixed">
		<parent link="arm_base"/>
		<child link="gripper"/>
		<origin xyz="0.5 0 0.2" rpy="0 0 0"/>
	</joint>
</robot>

This file describes the robot’s internal structure. It says there is a part called gripper that is always fixed at (x=0.5, z=0.2) relative to a part called arm_base. Exactly what we did using the static_transform_publisher above in Section 1.2.

2 Putting it all together

Let’s use URDF to build our TF tree. We’ll use two nodes:

robot_state_publisher: To publish the robot’s internal transforms (arm_base → gripper).
static_transform_publisher: To publish the robot’s placement in the world (world → arm_base). This is how its usually done. URDF defines the robot, and another node places it in the world.

2.1 Place the robot in the world:

The single command that places the robot in the world frame is through static_transform_publisher.

ros2 run tf2_ros static_transform_publisher --x 1 --y 0 --z 0 --yaw 0.785 --frame-id world --child-frame-id arm_base

2.2 Publish the robot’s internal structure:

This command starts robot_state_publisher node from robot_state_publisher package that you get when you install ROS2. You need to provide full path to your my_arm.urdf file (here I’ve used cat command so you need to be in the same directory where you saved the urdf file).

ros2 run robot_state_publisher robot_state_publisher --ros-args -p robot_description:="$(cat my_arm.urdf)"

2.3 Verify the result:

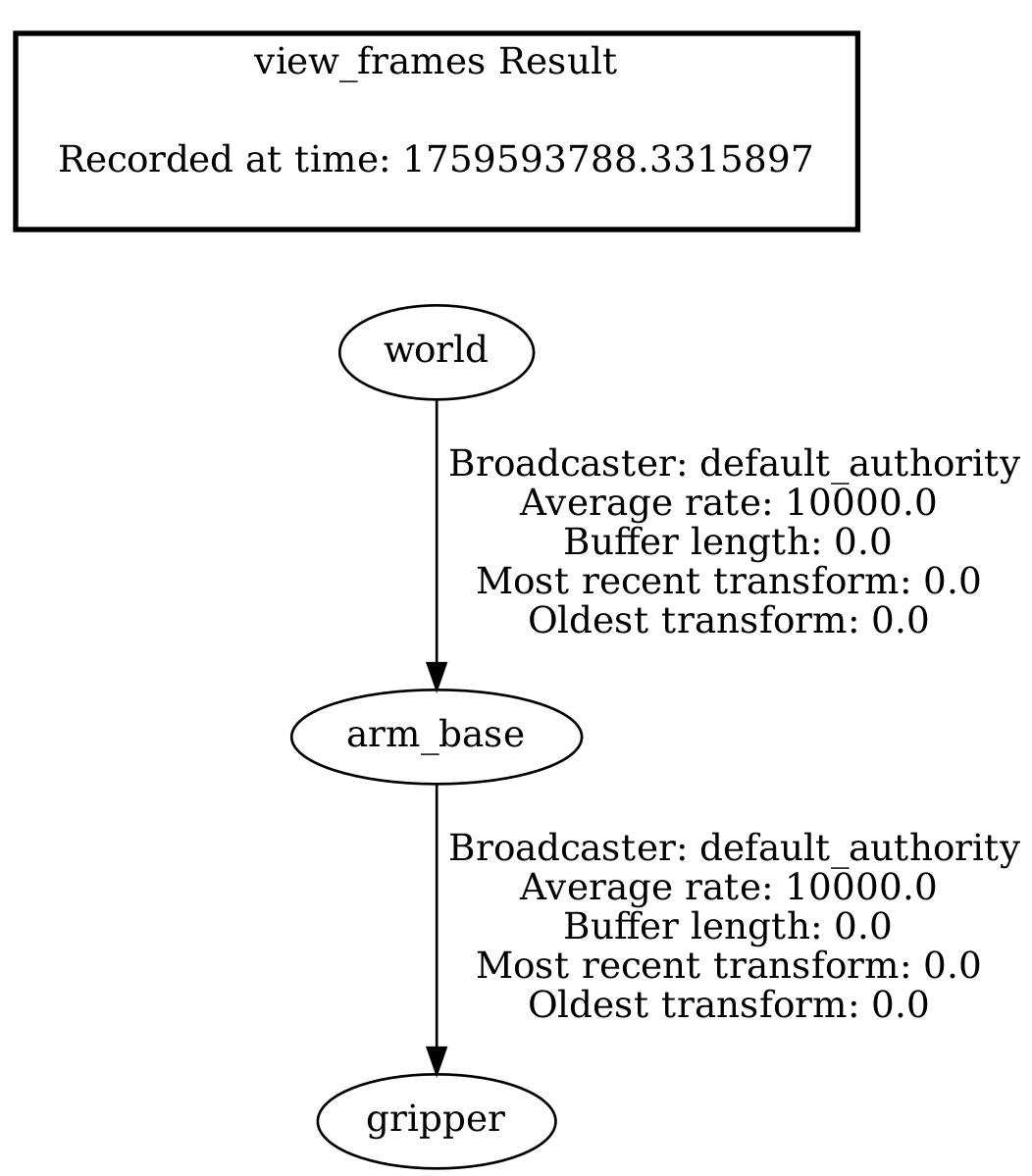

We can verify if the final TF tree is same as the one we built manually using view_frames node.

ros2 run tf2_tools view_frames

urdf and robot state publisher

💡 On a side note

Now is a good time to understand what’s going on and inspect things that are happening. If you open a terminal and type ros2 topic list, you can see bunch of new topics. One of them is /robot_description. In this topic, you can see your robot model. Simulator platforms (like gazebo) subscribes to this topic to make the robot. /tf, and /tf_static, are published by robot_state_publisher to publish the transforms. You can also see /joint_state topic. Nothing is publishing to /joint_state. I can say that because if I run ros2 topic info /joint_state, I can see that there are no publishers and only subscribers. The reason you can see /joint_state there is because robot_state_publisher subscribes to /joint_state topic, in order to move the joints according to the values published in that topic. In ROS2, a topic is listed as soon as a node declares its intent to either publish or subscriber to it.
